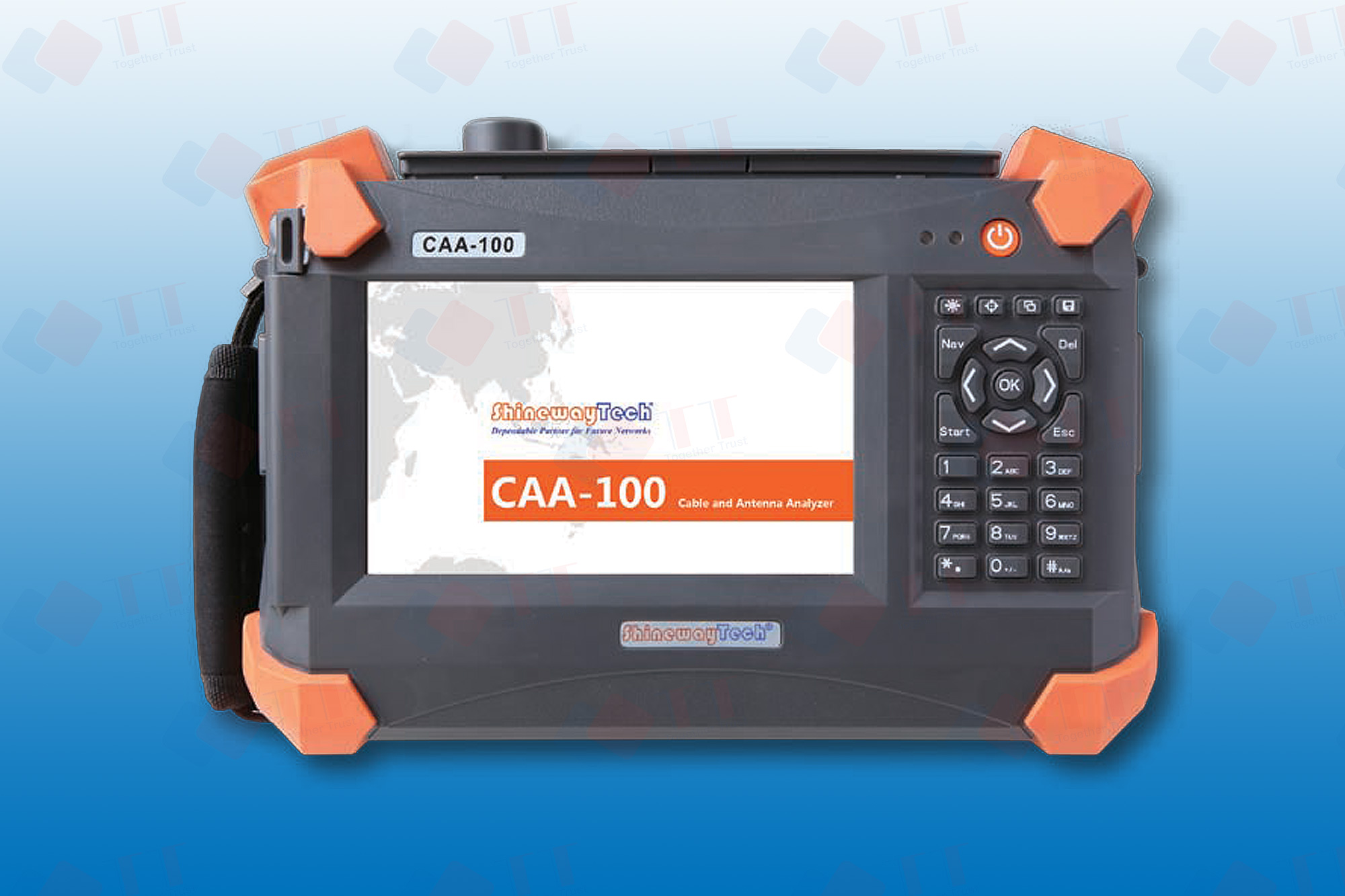

CAA-100 Cable & Antenna Analyzer
ShinewayTech® CAA-100 cable & antenna analyzer can test Return Loss and VSWR of load’ frequency. Also can get Return Loss, VSWR of DTF (distance-to-fault) and Cable Loss. Users can be easy to know the connection of cable & antenna system is reliable whether or not. CAA-100 series with frequency range 25MHz-4GHz and 60dB dynamic range can suitable for 2G/3G/4G/WiMAX system etc. CAA-100 series is the necessary measuring instrument for the new generation of wireless network development, upgrade and maintenance.
Features
● Frequency range:1MHz to 6GHz; suitable for 2G/3G/4G/WiMAX system etc.
● Dynamic Rang up to 60dB
● Intelligent limit /marker /curve calculations
● More than 8 hours long battery life
● 7 inch color LCD touch screen
● Optimized batch file management: edit/delete/filter
● Excellent Man-Machine interface for easy operation
